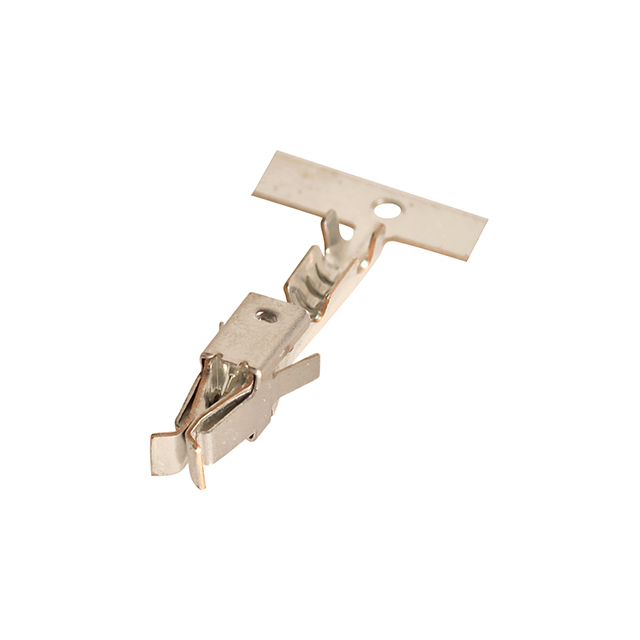

Automotive female crimp terminal for using Junior power timer 24-22AWG
3K pcs in a reel
這個產品無法線上訂購,請發送詢問!
尺寸圖
電器特性

Specifications

·Type: Automotive connector
·Series: Junior power timer connector
·Gender: Female
·Current rating: 7A Max.
·Voltage drop: 3mV/A
·Termination method: Crimp
·Isolation resistance: 100MΩ
·Dielectric resistance: 1500VAC
·Operating temperature: -40°C to +130°C
·Applicable wire size: 22AWG ~ 20AWG

Materials

·Contact: Phosphor bronze, thickness: 0.3mm
·Cantilever spring: Stainless steel, thickness: 0.2mm
·Surface treatmen: Pre-tin plated
