電器特性
Features

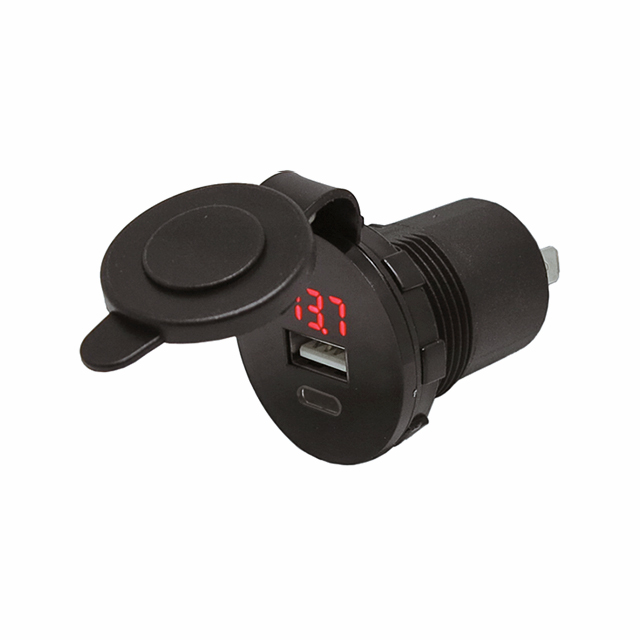

.Screw in dual USB charger with dust-proof cover
·LED display of battery voltage & consumed current
.Reverse polarity protection
·Short circuit protection
·Over current protection
·Over temperature protection
Specifications
·Output connector: USB A & C socket
·Input voltage: 12V / 24V DC
·Fuse: 4A Max.
·USB output
Type A: 5VDC 2.4A Max./1 port
Type C: 5VDC 2.4A Max./1 port
·Faston terminals: 6.3mm
·Mounting type: Panel mount, screw
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
·Operating temperature: -20°C to +45°C
·Color: Black
Materials
·Housing: Nylon with glass fiber (UL 94-HB)
·Top contact: PC
·Cap: PVC
