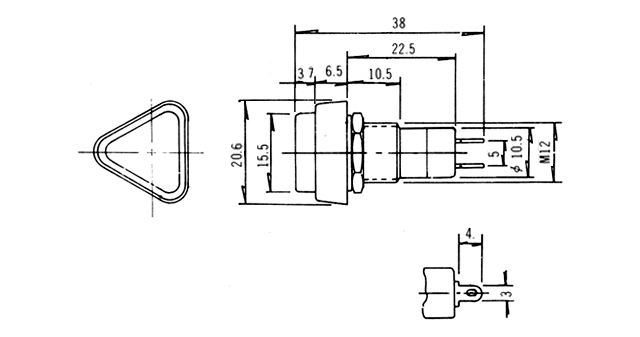

Pushbutton switch
Open type

產品編號：B165M
顏色

每一個單價 (USD)

5+	20+	100+	200+
1.3158	0.7519	0.4386	0.3655

購買

輸入數量查看交期

Switch function: Momentary / NO / Off-(On)
Rating: 3A 125VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 1000VAC for 1 minute

Mini pushbutton switch
Open type

產品編號：B166
顏色

每一個單價 (USD)

2+	10+	50+	100+
2.3684	1.3534	0.7895	0.6579

購買

輸入數量查看交期

Switch function: Momentary / NO / Off-(On)
Rating: 1A 125VAC
Contact resistance: 20mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 1500VAC for 1 minute

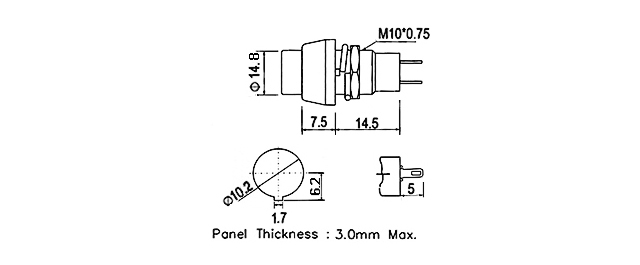

Circle type pushbutton switch
Open and close type W/approval

產品編號：B167A
顏色

每一個單價 (USD)

2000+
1.0478

購買

輸入數量查看交期

Circuit: SPST
Switch function: Latching / Off-On
Rating: 3A 125VAC / 1A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.

Circle type pushbutton switch
Open type W/approval

產品編號：B167B
顏色

每一個單價 (USD)

2+	10+	50+	100+
2.4561	1.4035	0.8187	0.6823

購買

輸入數量查看交期

Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 3A 125VAC / 1A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.

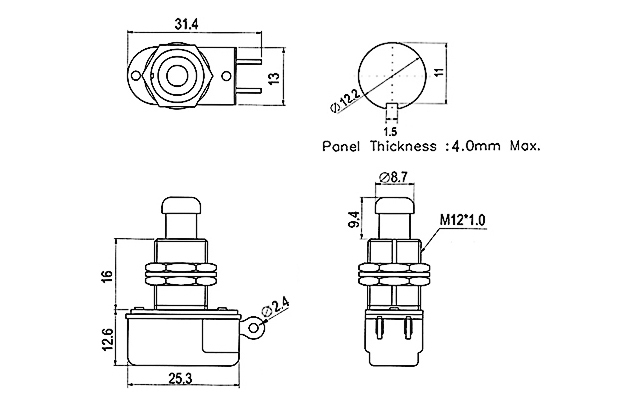

2P pushbutton switch (SPST)
Open type

產品編號：B16900

每一個單價 (USD)

2000+
1.2671

購買

輸入數量查看交期

Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 6A 125VAC / 3A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.

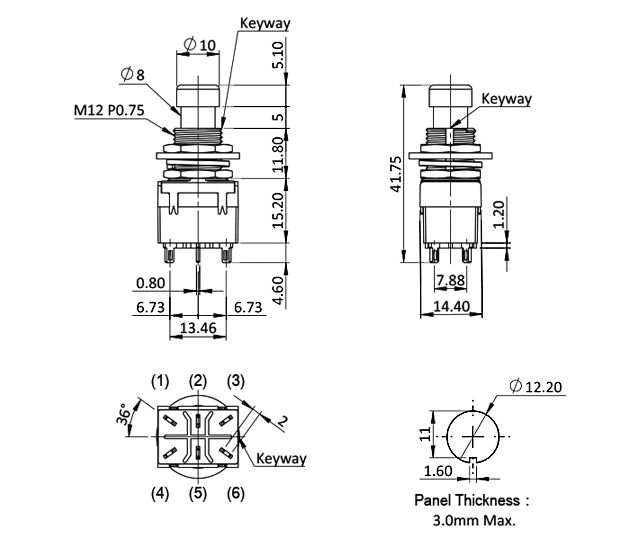

6P pushbutton switch (DPDT)
Open and close type

產品編號：B16902A

每一個單價 (USD)

50+
1.7057

購買

輸入數量查看交期

Circuit: DPDT
Switch function: Latching / Off-On
Rating: 4A 125VAC / 2A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.

6P pushbutton switch (DPDT)
Open type

產品編號：B16902B

每一個單價 (USD)

50+
1.7544

購買

輸入數量查看交期

Circuit: DPDT
Switch function: Momentary / NO / Off-(On)
Rating: 4A 125VAC / 2A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.

Square type pushbutton switch
Open type

產品編號：B169A
顏色

每一個單價 (USD)

10+	40+	200+	400+
0.6842	0.3910	0.2281	0.1901

購買

輸入數量查看交期

Switch function: Momentary / NO / Off-(On)
Rating: 3A 125VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 1500VAC for 1 minute

Square type pushbutton switch
Close type

產品編號：B169B
顏色

這個產品無法線上訂購，請發送詢問!

發送詢問

Switch function: Momentary / NC / Push off
Rating: 1A 125VAC
Contact resistance: 20mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 1500VAC for 1 minute

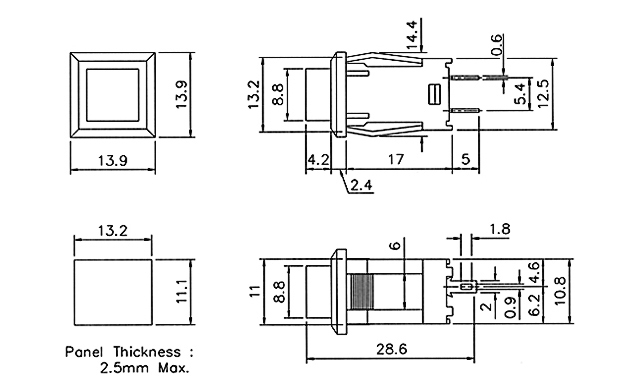

Square type pushbutton switch
Open and close type

產品編號：B169C
顏色

每一個單價 (USD)

5+	20+	100+	200+
1.4386	0.8221	0.4795	0.3996

購買

輸入數量查看交期

Switch function: Latching / Off-On
Rating: 3A 125VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 1500VAC for 1 minute

2P metal pushbutton switch
36VDC 2A (SPST) off-(on)

產品編號：B169HA

這個產品無法線上訂購，請發送詢問!

發送詢問

Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M12x0.75
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.

2P illuminated metal pushbutton switch
W/LED (SPDT) off-(on)

產品編號：B169HD
電壓

顏色

這個產品無法線上訂購，請發送詢問!

發送詢問

Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M12x0.75
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.

2P illuminated metal pushbutton switch
W/LED (SPDT) off-(on)

產品編號：B169MA
電壓

顏色

每一個單價 (USD)

150+
3.7524

購買

輸入數量查看交期

Circuit: SPDT
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Contact resistance: 50mΩ Max.
Insulation resistance: 1OOOMΩ Min.

2P metal pushbutton switch
36VDC 2A (SPST) off-(on)

產品編號：B169NA

這個產品無法線上訂購，請發送詢問!

發送詢問

Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M16x1.0
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.

2P metal pushbutton switch
36VDC 2A (SPST) off-(on)

產品編號：B169NB

這個產品無法線上訂購，請發送詢問!

發送詢問

Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M16x1.0
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.

2P illuminated metal pushbutton switch
W/LED (SPST) off-(on)

產品編號：B169NC
電壓

顏色

這個產品無法線上訂購，請發送詢問!

發送詢問

Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M16x1.0
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.

2P illuminated metal pushbutton switch
W/LED (SPDT) off-(on)

產品編號：B169ND
電壓

顏色

這個產品無法線上訂購，請發送詢問!

發送詢問

Circuit: SPST
Switch function: Momentary / NO / Off-(On)
Rating: 2A 36VDC
Thread: M16x1.0
Contact resistance: 50mΩ Max.
Insulation resistance: 5OMΩ Min.

2P metal pushbutton switch
125V 4A / 250V 2A (SPST) off-(on)
