電気の特性

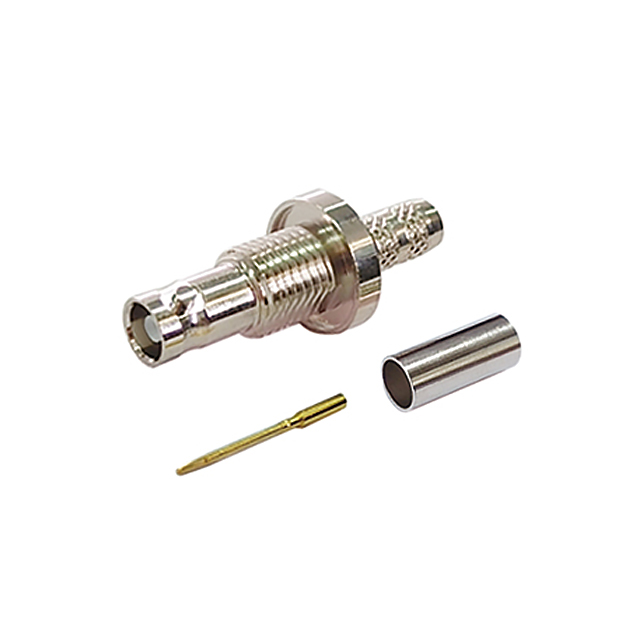

Specifications
·Gender: Female
·Connector type: 12G-SDI BNC
·Impedance: 75Ω
·Body orientation: Straight
·Mounting type: bulkhead crimp type
·Frequency range: 0-12GHz
·Voltage rating: 500VAC
·Contact resistance: ?3.0mΩ
·Insulation resistance: ?5000MΩ
·Withstand voltage: 1000VAC for 1 minute
Materials
.Center contact: Beryllium Copper, gold-plated
.Body: Brass, gold-plated
.Insulator: Teflon
