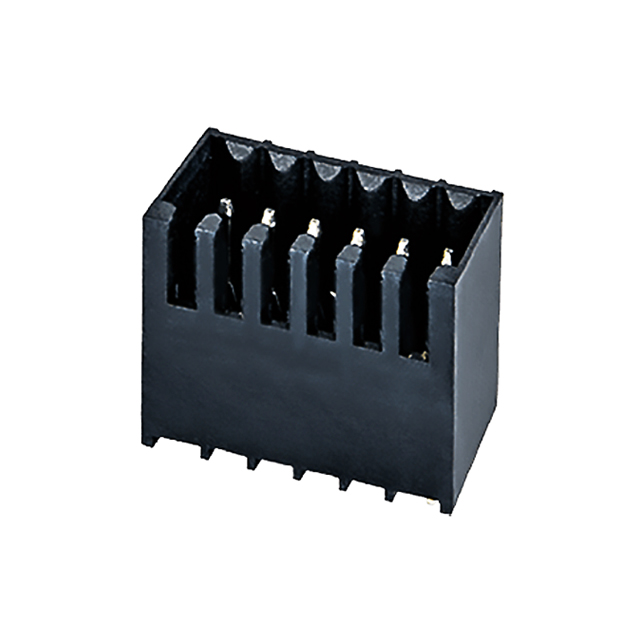

2.54mm Female terminal block dual row 12P PCB with approval
この商品はオンラインで注文ができなくで、お問い合わせてください。
データシート
電気の特性

Specifications

·Pitch: 2.54mm
·Gender: Female
·No. of contacts: 12
·Current rating: 5A
·Voltage rating: 150VAC
·Insulation resistance: ≧500MΩ at DC 500V
·Mounting type: Through hole
·Soldering method: Wave soldering
·Type of locking: Without
·Level: Double level
·Operating temperature: -40°C to +120°C
·Color: Black

Materials

·Insulation: PA, flame retardant rating UL94V-0
·Conductor: Copper alloy, tin plated
