1. トップページ
  2. 同軸 コネクタ
  3. F コネクタ
  4. M5602

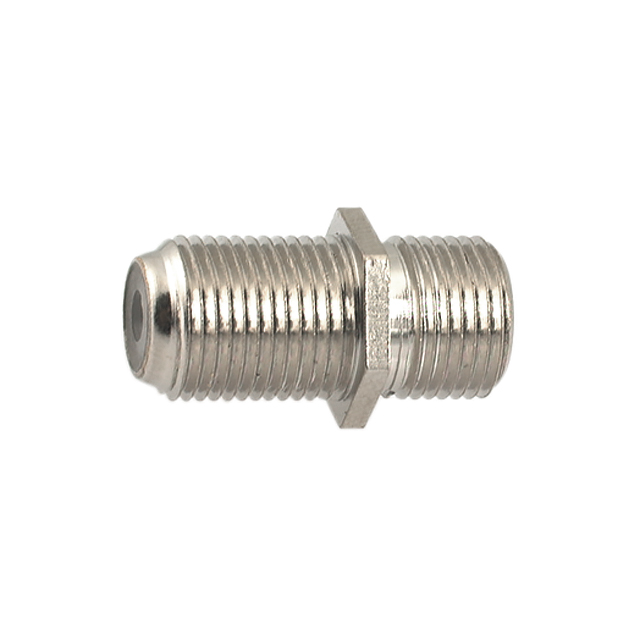

Double F female (F-81)
それぞれの価格 (USD)
数量 価格
5000+ 0.1437
購買
数量を入力して、納期を確認します。
データシート
電気の特性

Specifications

·Gender: Female - female
·Adapter type: F to F
·Adapter type A: F female
·Adapter type B: F female
.Impedance: 75Ω
·Body orientation: Straight
·Mounting type: Panel mount
.Frequency range: 0-2GHz
.Voltage rating: 250VAC
·Contact resistance: 5.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
