  4. M5754

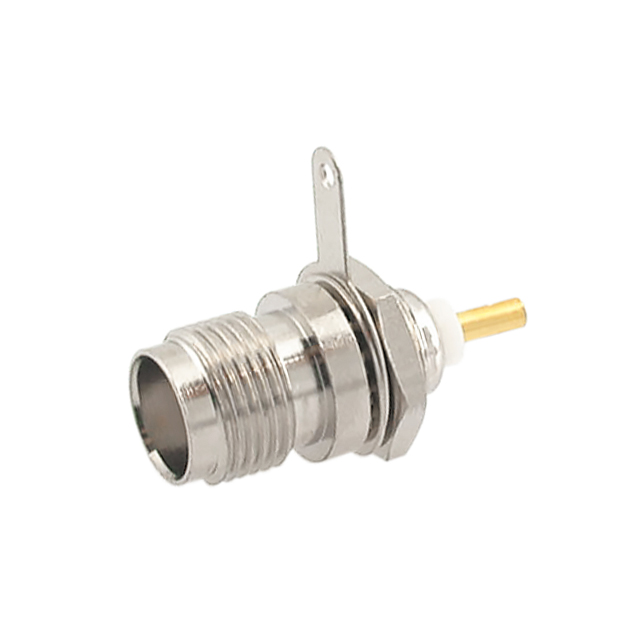

TNC female bulkhead receptacle
gold-pin
それぞれの価格 (USD)
数量 価格
5+ 1.7143
20+ 0.9796
100+ 0.5714
200+ 0.4762
購買
数量を入力して、納期を確認します。
データシート
電気の特性

Specifications

·Gender: Female
·Connector type: TNC
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: Panel mount
·Termination: Solder
·Frequency range: 0-4/0-1 GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
