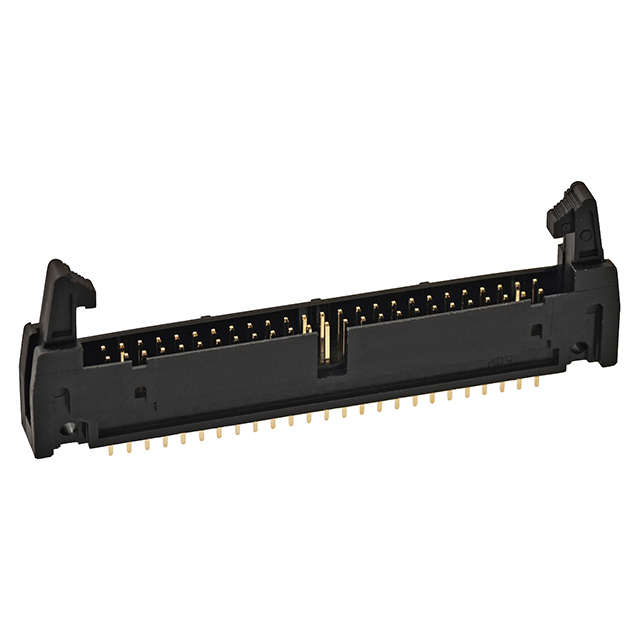

2.54mm Box header 50P
W/latch lever straight
Unit price (USD)
Quantity Price
60+ 0.8367
100+ 0.4881
200+ 0.4067
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Pitch: 2.54mm
·No. of rows: 2
·No. of contacts: 50
·Current rating: 3A Max.
·Mounting type: Through hole
·Orientation: Straight
·Termination: Solder
·Insulation resistance: 1000MΩ Min. at 1000VDC
·Withstand voltage: 1000VAC RMS for 1 minute
·Operating temperature: -55°C to +105°C

Materials

·Housing: PBT (UL94V-0), black
·Terminal: Sq. 0.64mm copper alloy, gold plated
