Electrical Characteristics

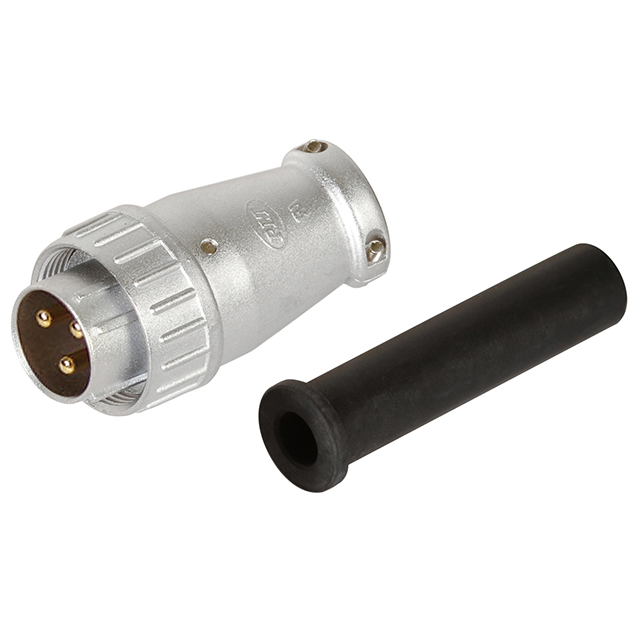

Specifications
·Gender: Male
·Pin diameter: 1.8mm
·Rated current: 15A
·Rated voltage: 250V
·No. of contacts: 3
·Connector size: M22
·Mounting type: Cable mount
·Body orientation: Straight
·Termination method: Solder
·Operation limit voltage: 250VAC rms
·Contact resistance: 3.0mΩ Max. at DC 1A
·Insulation resistance: 2000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC rms for 1 minute
Materials
·Body: Zn alloy, M-Cr plated
·Clamp: Zn alloy, M-Cr plated
·Cap: Zn alloy, M-Cr plated
·Tooth body: Zn alloy, M-Cr plated
·Ring: SUS
·Rubber: Rubber
·Screw: Iron, M-Ni plated
·Screw: Copper alloy, M-Ni plated
·Insulator: Bakelite
·Contact: Copper alloy, M-Au plated
