Electrical Characteristics
Specifications

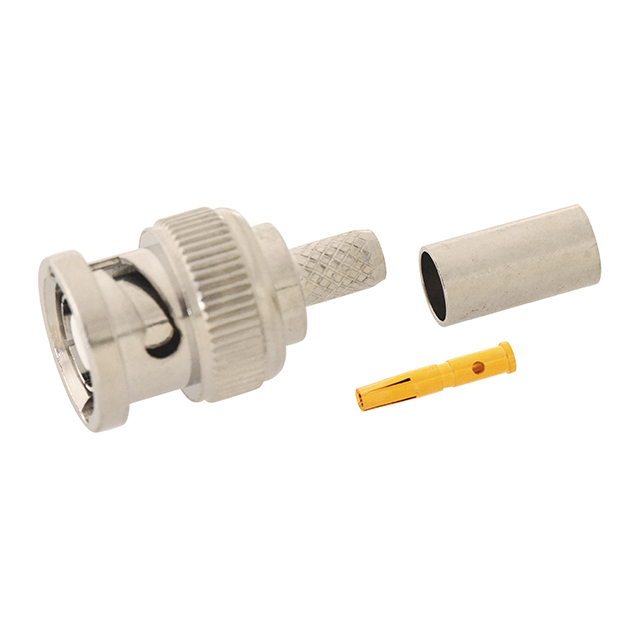

·Gender: Male
·Connector type: Reverse polarity BNC
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: Cable mount
·Termination: Solder
·Frequency range: 0-4/0-1 GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
Materials
·Shell: Brass, nickel plated
·Gasket: Rubber
·Inner retaining ring: SK5, nickel plated
·Spring: SK5, nickel plated
·Washer: Brass, nickel plated
·Insulator: Teflon
·Body: Brass, nickel plated
·Pin: Brass, gold plated
·Ferrule: Brass, nickel plated
