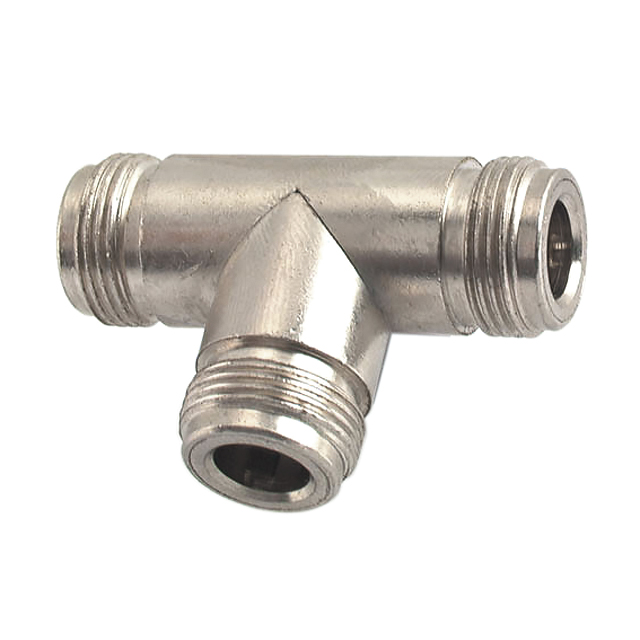

T-type triple N female gold-pin
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics

Specifications

·Gender: Female- 2 x female
·Adapter type: N
·Adapter type A: N female
·Adapter type B: N female
·Adapter type C: N female
·Impedance: 50Ω
·Body orientation: Straight
·Frequency range: 0-11GHz
·Voltage rating: 1000VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 2500VAC for 1 minute

Materials

·Body: Brass, nickel plated
·Pin: Brass, gold plated
·Insulator: Delrin
