Electrical Characteristics
Specifications

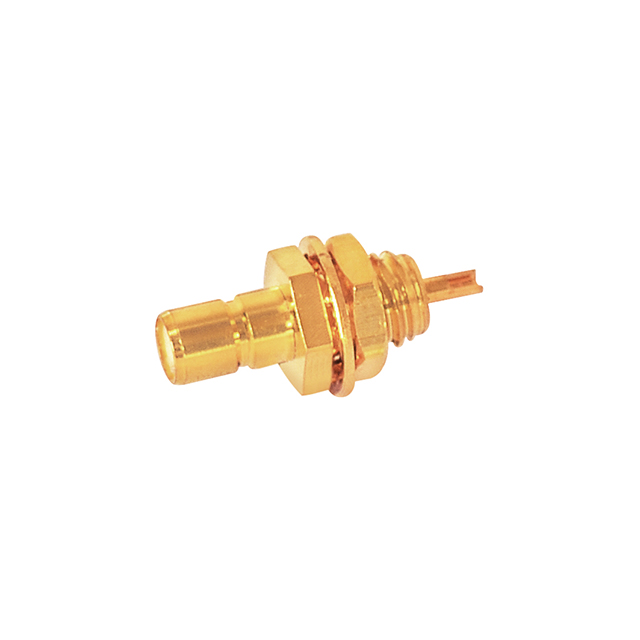

·Gender: Female
·Connector type: SMB
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: Panel mount
·Termination: Solder
·Frequency range: 0-4GHz
·Voltage rating: 250VAC
·Contact resistance: 6.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 750VAC for 1 minute
Materials
·Body: Brass, gold plated
·Insulator: Teflon
·Pin: Brass, gold plated
·Washer: Brass, gold plated
·Nut: Brass, gold plated
