Electrical Characteristics
Features

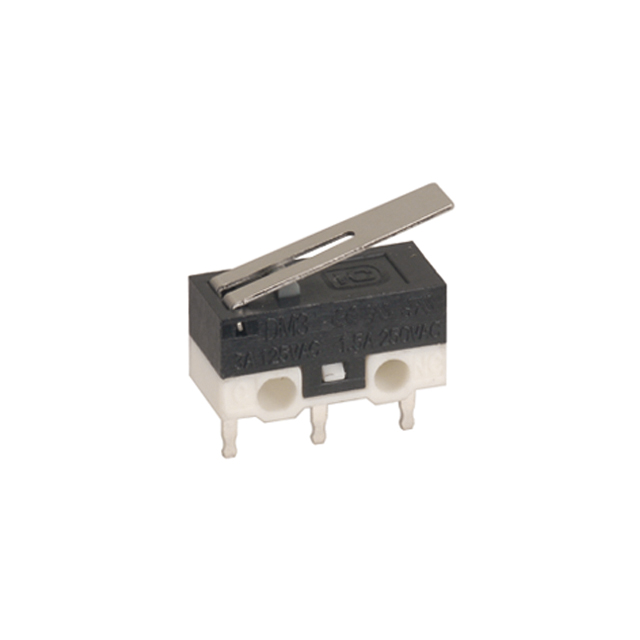

·Small dimensions, just 12.8x5.8x6.5mm (0.504"x0.228"x0.256")
·Good feeling and more actuators are applied
Specifications
·Circuit: SPDT
·Switch function: On-On
·Rating: 1A 125VAC, 30mA 5VDC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Operating force: 30gf
·Operating temperature: -25°C to +65°C
·Soldering temperature: 250°C Max. for 3 secconds
·Ambient humidity used: 85% RH Max.
·Mechanical life: 1,000,000 cycles
·Electrical life: 10,000 cycles
Materials
·Case: PBT
·Base: PBT
·Button: PBT
·Terminals: C2680
·Contacts: Silver alloy
·Spring plate: C1720
