  4. B165M

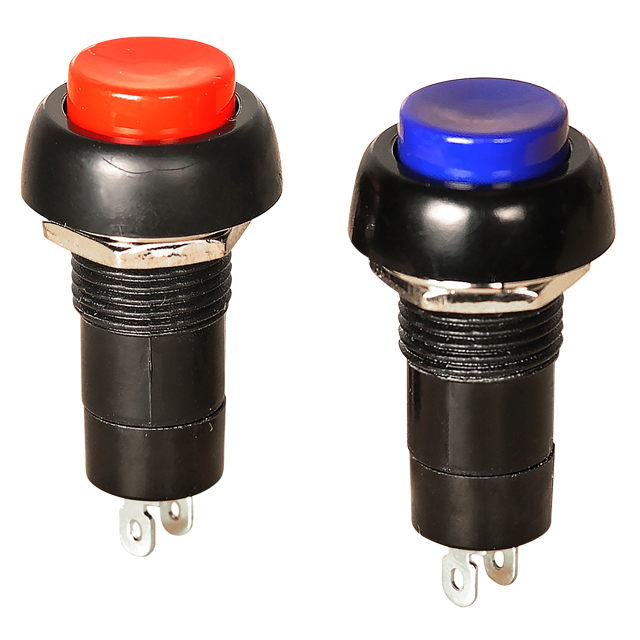

Pushbutton switch
Open type
125V 3A
Unit price (USD)
Quantity Price
5+ 1.0000
20+ 0.5714
100+ 0.3333
200+ 0.2778
Specification :
Color
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

.Switch function: Momentary / NO / Off-(On)
·Rating: 3A 125VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1000VAC for 1 minute
