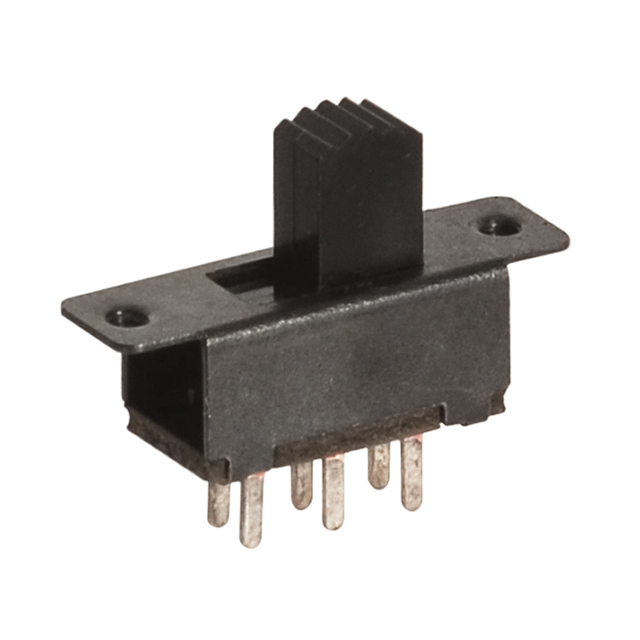

Electrical Characteristics
Specifications
·Circuit: 2P2T
·Switch function: On-On
·Rating: 0.5A 50VDC
·Contact resistance: 30mΩ Max. at 1A 5VDC
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Timing: Non shorting
·Operating force: 300±100g
·Life cycle: 10,000 cycles Max.
Materials
·Knob: POM, black
·Frame: Steel strip, black
·Terminal base: Phenolic resin, black
·Terminal: Brass strip, Ag plated over Ni plated
·Contact: Brass strip, Ag clad
·Spring: Steel wire, temper
